SHIMANO Ultegra Di2 Road Group R8170 hydraulic Disc Brake 2x12

SHIMANO Ultegra Di2 road bike groupset R8170 hydraulic disc brakes 2x12

With the components of the 8100 Ultegra series, Shimano offers you an excellent price-performance ratio. You can see the years of experience of the Japanese in every detail. Whether functionality, durability or weight, top values are achieved everywhere. With this top group, Shimano also revolutionises Di2 components. From now on, the shifting commands are transmitted without wiring. The wireless technology with the exclusively developed transmission protocol guarantees you the fastest shifting processes that have been possible in the bicycle sector up to now. In order to make the rear derailleur and front derailleur as compact and streamlined as possible, these components are still connected to the new internal BT-DN300 battery via an E-Tube cable.

Ultegra Di2 shift | brake lever ST-R8170 set and BR-R8170 flat mount disc brake set
The gears are engaged quickly and reliably at the touch of a button. The precise pressure point of the levers ensures that gear changes are only triggered when the rider consciously shifts gears. There is no fear of accidental operation. In addition, the wireless chip scores with low energy consumption. The service life of the CR1632 button cell is over 1.5 years. This system can be fully personalised with the Shimano E-Tube app. The shifting logic is adapted to the rider's preferences. Among other things, the shifting speed can be set, a fully or semi-synchronous shifting mode can be selected and the programme buttons on the lever can be assigned certain functions.
When braking, you always have optimal control over your bike with SERVO WAVE technology. This offers unparalleled control and sufficient power. But not only the inner values are convincing. The ergonomics have also been significantly improved. The grip recess is better shaped and the rounded brake grips lie securely under your fingers even on long descents. In addition, the grip width can be individually adjusted. The completely redesigned ULTEGRA BR-R8170 caliper enriches the road cycling world with a new level of control, with optimised modulation and unprecedented braking power. The new design minimises brake rub. In addition, despite its compact size, this system is quieter and easier to maintain than ever before.

Crank FC-R8100 2-speed
The Ultegra FC-R8100 crank not only converts your pedal power into propulsion, its high stiffness also ensures extremely fast and precise shifting. The high shifting precision is supported by the optimised chainring design. To keep the weight low, the Japanese continue to rely on the proven Hollowtech II design of the crank arms. The cranks are available in ratios of 52-36 teeth and 50-34 teeth and with crank arm lengths of 160 to 175 millimetres.

Rear derailleur RD-R8150 Di2 Shadow
The compact Ultegra 8150 rear derailleur delivers lightning-fast yet precise shifting. Even under medium and high loads, gear changes are quick and quiet thanks to the low profile design and Shimano Shadow+ technology. There are no noisy crashes or rattles with these high-tech components! Despite its slim dimensions, the rear derailleur houses the battery charging port and the wireless mode button. With only one cage length, the rear derailleur shifts on cassettes from 11-30 teeth to 11-34 teeth, increasing the versatility of the top component group from the Japanese.

FD-R8150 Di2 front derailleur
The Ultegra R8150 front derailleur is more compact than ever and a real powerhouse. The front derailleur shifts absolutely seamlessly between the chainrings and performs its shifting operations with digital precision in all conditions. The reduced frontal engagement surface has also made it possible to reduce drag.

BT-DN300 internal battery
Latest generation integrated battery that is recessed into the seat post or steerer tube. The internally routed cables give the road bike a tidy look. The integration of the battery into the frame also reduces the number of attachments that are exposed to the wind. The battery can remain in the bike for charging.

CS-R8100 cassette
The Shimano Hyperglide+ cassettes have set new standards in off-road use with their smooth up- and downshifting across the entire gear range. For the Ultegra 8100 groupset, the Japanese have also adopted this technology for road bike use. Even when using maximum power on climbs or sprinting to the finish line, you can now shift without hesitation. This is made possible, among other things, by longer teeth. Despite the new design and the additional 12th sprocket, the CS-R8100 cassettes are compatible with existing 11-speed road freewheel bodies.

Ultegra | XT chain CN-M8100 12-speed
The CN-M8100 is characterised by its particularly quiet chain run. This is not only noticeable when pedalling, but is also noticeable acoustically with a 4db quieter drive. Thanks to a new chromed surface in combination with the proven SIL-TEC coating, the chain's service life has been kept at the same level as that of the M8000 chain, despite a smaller outer width.


Technical specifications:

Material: aluminium, plastic
Gears: 2x12
Brake type: hydraulic disc brake
Brake mounting: Flat Mount
Crankshaft: 24 mm
Crank length: 170; 172.5 or 175 mm
Chainring spacing: 50-34 or 52-36 teeth
Chainring mount: 110 mm 4-arm | Shimano asymmetrical
Cassette spacing: 11-30 or 11-34 teeth
Freewheel body compatibility: Shimano 11-/12-speed Road
Front derailleur mounting: braze-on (clamp optionally available)
Battery life: approx. 2000 km
Colour: Grey

Weight according to manufacturer: n.a.
Weight weighed: from 2430g (without bottom bracket and without charging cable)

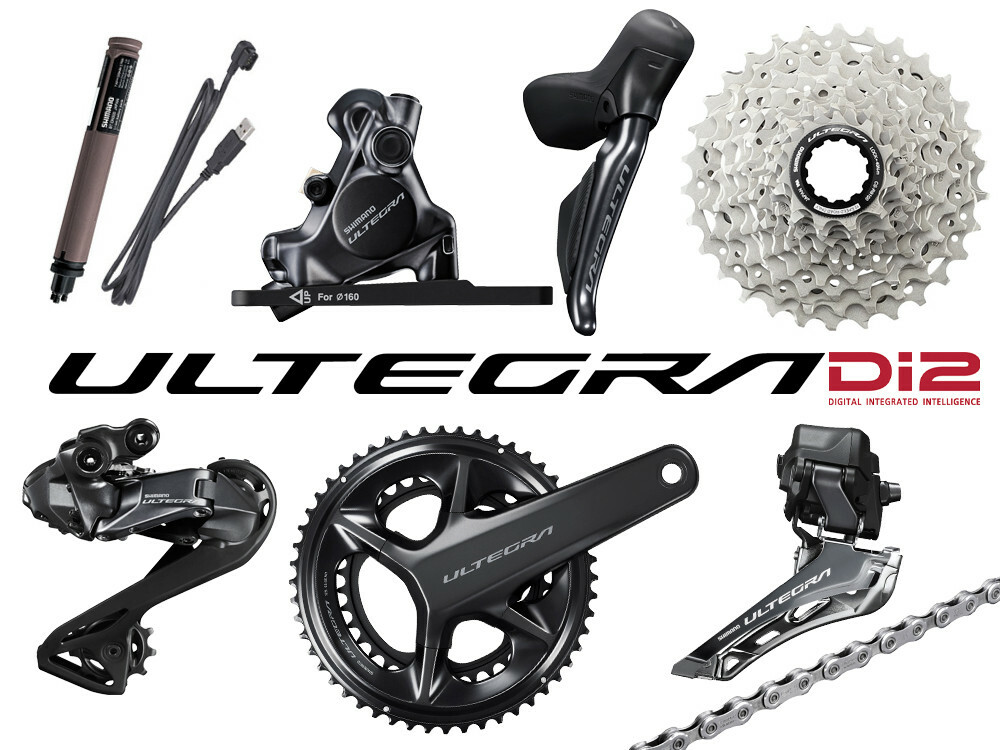

Scope of delivery:

1x Shimano Ultegra crank FC-R8100 2-speed
1x Shimano Ultegra shift/brake lever set ST-R8170 Di2 Including Flat Mount brake caliper BR-R8170 Set front/rear with filled brake lines
1x Shimano Ultegra rear derailleur RD-R8150 Di2 Shadow+
1x Shimano Ultegra front derailleur FD-R8150 Di2
1x Shimano battery BT-DN300 internal
1x Shimano cassette CS-R8100
1x Shimano Ultegra | XT chain CN-M8100 12-speed | 116 chain links including Quick Link chain lock
1x charging cable EW-EC300
1x bottom bracket (optional)

Note: Weights may vary depending on the selected configuration.
You can find any tools and assembly accessories you may need in our shop.
The bleeding kit and brake fluid required for connecting the brakes can be found in our shop.
Delivery without E-Tube cable, brake discs and HR flat mount adapter for 160 mm brake Disc!
